For units and individuals that have long been engaged in the long-distance transportation of goods, the use of trailers is generally adopted for operation. He can not only increase traffic but also reduce costs (low fuel consumption). However, how to ensure that the trailer is always in good working condition during transportation is particularly important. For this reason, Auto Parts Network reminds the driver that in addition to the normal maintenance and troubleshooting of the host vehicle, the trailer brake should be used correctly and timely.
Trailer braking system works:

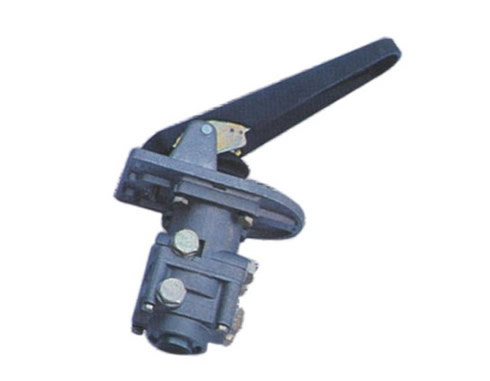

The semi-trailer brake type generally adopts dual-line pneumatic brakes and requires the functions of service braking, parking brake, and emergency braking. When braking on a moving train, the brake pedal is depressed. Compressed air enters the trailer control circuit through the trailer brake valve on the tractor . Through the emergency brake valve , the valve is opened and the gas enters the brake chamber. The diaphragm of the air chamber and the brake piston of the double-chamber air chamber are pushed to the braking position. The push rod is pushed out, and the brake adjusting arm is pulled to drive the camshaft to realize the driving brake. When the brake is released, the brake pedal is released. The gas for the single-chamber air chamber and double-chamber air chamber service brake is deflated by the quick release valve. The single-chamber air chamber diaphragm and double-chamber air chamber brake piston are in the return position. Under the action of the spring, the division is restored to the non-braking position, but the compressed air of the trailer's air reservoir is missing and filled into the parking brake chamber of the double-chamber air chamber. The compression spring is the parking brake piston in the non-braking position. Relieved. In the event of a failure of the service brake, such as emergency braking during driving, the wrench control valve can be used to deflate the brake chamber of the air chamber, and the energy storage spring is immediately extended to push the two brake pistons to the system. Move position to achieve braking.
In order to ensure the safety of the vehicle, drivers should pay attention to the following points:
1. Check whether the main and trailer air pressure pipelines are connected before exiting the vehicle and whether there is any air leakage or not, and eliminate the sewage in the air reservoir.
2. Use brakes correctly during driving and avoid emergency braking. When turning or encountering obstacles, pedestrians, etc. need to brake, they must decelerate early and drive slowly.
3. Strictly control or minimize the use of horns, otherwise the air pressure will drop too quickly due to the use of too many horns, and braking performance cannot be guaranteed.
4. During maintenance, the clearances between the main brakes of the trailer and the trailer and the brake hub should be adjusted to ensure that the left and right main wheels are consistent.
5. The trailer and the trailer should do synchronous braking tests before the transportation. The trailer braking should be slightly earlier than the braking of the main vehicle. Generally it can be 0.2~0.5 seconds in advance. The main and trailer can also be braked at the same time but not later than the main Cars, so as to avoid the trailer colliding with the car.
6. Observe that the reading of the barometer of the main vehicle should be kept above 5.5 kg/cm2. Otherwise, it should not be continued. In particular, when towing operations are carried out in areas with variable road conditions in the mountainous areas, due to more ramps and bends, frequent use of brakes and rapid pressure drop should be slow. Do not turn off the engine when going downhill to ensure that the pressure is normal.
